Don't waste time, get your Affordable Drill Tower today!!!
We know it's hard to believe, but the Affordable Drill Tower starts at only $65,000 (delivered & Installed)! Some locations may have a delivery fee.
38’ (Overall Height)
34’ (Top Floor)
To comply with NFPA 1402 & ISO, the Affordable Drill Tower (California Tower) is 6-Stories.
The Affordable Drill Tower (B.A.T. & B.A.R.T. Towers) are 7-Stories.
The Affordable Drill Tower (California Tower) is only 13'6" W x 18' 6" L (before optional Outriggers are added).
Typically, we can have your Affordable Drill Tower delivered and installed within 2-4 weeks (depending on weather).
The Affordable Drill Tower was engineered and designed to be a “free-standing” drill tower, in which case, no anchors or attachments are required. However, to be NFPA 1402 (v. 2019) Compliant, we do offer anchorage.
Yes, it’s recommended that the Affordable Drill Tower be installed on a concrete pad, because using extension ladders and water in the grass, or dirt can be unsafe.
We recommend a typical “residential” slab, 5” with wire mesh. For an engineering fee, Affordable Drill Towers can provided a "stamped", engineered design for your concrete contractor.
We recommend 15’ W x 20’ L x 5" D (minimum for the California Tower).
50' W x 50' L x 5" D is recommended for all Affordable Drill Towers with Outriggers, and the B.A.T. (Big A$$ Tower) & B.A.R.T. (Big A$$ Rescue Tower)
No problem. All of the vertical legs of the Affordable Drill Tower have the ability to accommodate for uneven and sloping grades. The grade should not exceed 1%.
1% slope, which is enough for water drainage on an impervious surface.
Yes. The Affordable Drill Tower was designed by a Professional Structural Engineer (PE). The Engineer calculated all of the load ratings, wind loads, and tip-over loads. A “stamped drawing” is on file and will be provided upon arrival of our Installation Team.
No, the Affordable Drill Tower is manufactured of high-strength, galvanized steel. However, depending on your climate, over time, you may develop rust on the nuts, bolts and welds. It is recommended that you use a wire brush to remove the rust, then spray the area with a galvanizing paint.
Yes. The Balcony/Instructor's Platform is 5’ W x 3’ 6” D, and includes a self-closing access gate. Additional Balconies are available and recommended, for more realistic scenarios.
Yes, it includes:
A 2-1/2" Fire Department Connection (FDC) at Ground Level
Two (2) Sprinkler Heads with a Control Valve on the 1st Floor
Three (3) 2-1/2” Standpipe Valves on the 1st, 2nd & 3rd Floors
System Pressure Gauge on the 3rd Floor.
* All hose connections are National Standard Thread ("NST")
175 p.s.i. (the same as any commercial FPS).

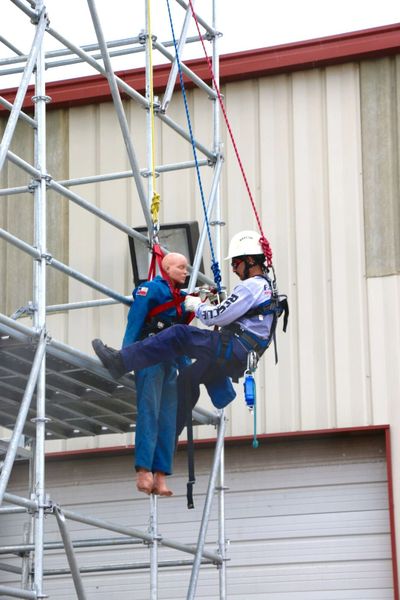

Absolutely! There are Anchor Points throughout the Affordable Drill Tower. Each Anchor Point has an Axial Pull rating in excess of 10,000lbs.
Because of the “Open Design,” The Affordable Drill Tower has a 150 M.P.H. (150) wind load when you choose the NFPA 1402 (v. 2019) option!
You can enclose the ground level only. If you have the need, you can enclose any part of the Affordable Drill Tower while conducting your specific drill/training, but must immediately remove the enclosure after use.
Immediately remove all personal, place the Affordable Drill Tower out of service, provide a safe perimeter around the Affordable Drill Tower, and contact the Affordable Drill Towers company.
Call us for a list: 844-558-6937 - Or visit our Customer's Page
Absolutely! 5 years against any manufacturer's defects (i.e.: cracked welds, poor seam welds, splits in the steel, etc.).
The warranty does not cover "Acts of God" (lightning, floods, hurricanes & tornadoes). Misuse, previous damage, apparatus/vehicle strikes, not following the Affordable Drill Towers Safety Rules and neglect are not covered under the warranty.
